Buckeye 7340
Buckeye Trenchers is not only the oldest name in trenching equipment but also the leader in the trencher manufacturing industry.
For over a century Buckeye Trenchers has delivered the durability required for your toughest jobs. Today, we continue to bring new innovations to our trenchers to provide the highest quality machines on the market.

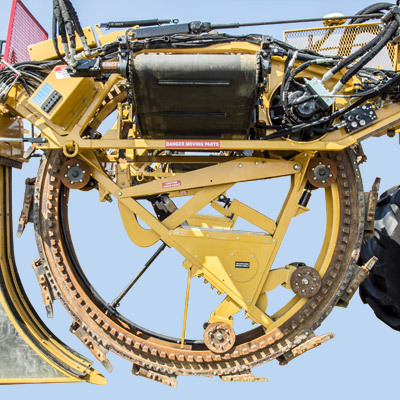

Heavy Duty Digging Wheels
A heavy duty digging wheel featuring the industry’s largest diameter, segments, drivers, and truck assemblies. A larger wheel increases the carrying capacity of the wheel, provides more distance between the wheel and conveyor, and allows more time and distance for the dirt to exit the buckets and land on the conveyor, resulting in less carryover.
Advanced Cooling Systems
The machine cooling packages ofthe Buckeye 7340 are designed for severe-duty industrial applications, with variable speed and reversing fans providing efficiency and easy cleaning.

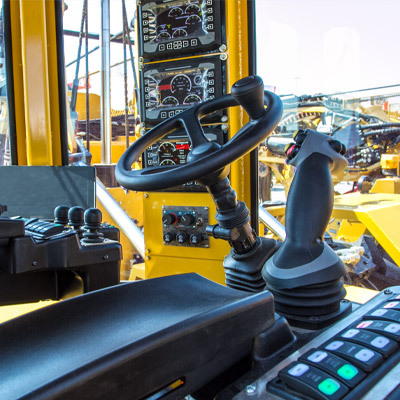

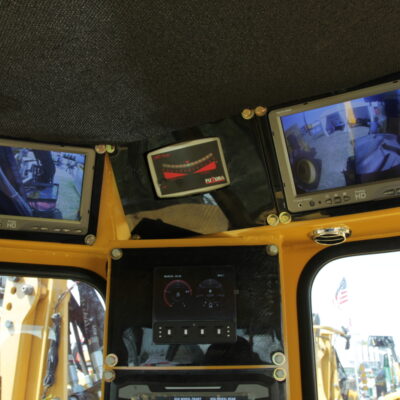

Operator-Friendly Cab
A quiet, comfortable cab with state-of-the-art control systems featuring responsive and interactive controls makes the operating experience in the Buckeye 7340 the best in the industry.

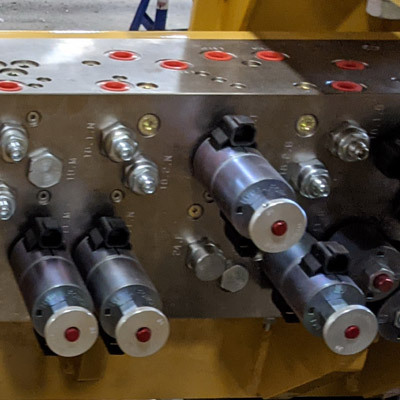

Application Specific Valve Blocks
A hydraulic system featuring these application specific engineered components reduces hoses, O-rings, and hundreds of connection points.
| ENGINE | |
| Manufacturer | Cummins |
| Off-Road Emission Standards | EPA Final Tier 4/EU Stage V |
| Gross Power | 430 (473 Peak) |
| Number of Cylinders | 6 |
| Engine Displacement | 12L |
| Aspiration | Turbocharged and charge-air cooled |
| Air Cleaner | Dual stage with safety element |
| Engine Cold-Start System | Engine air heater |
| COOLING | |
| Cooling System | Severe-duty cooling package with dual hydraulic coolers |
| Fan Drive | Hydraulic, variable speed, reversing |
| DRIVETRAIN | |
| Transmission | Powershift |
| Speed Ranges | 6 speeds - forward and reverse |
| Axles | |
| -Front Axle | Meritor Planetary Steer Axle |
| -Rear Axle | Funk 1400 Axle w/Super-Wide Extreme-Duty (SWEDA™) Planetaries |
| -Differential | (Front and rear) operator-controlled hydraulic-locking differential lock |
| Steering | Fully hydraulic steering wheel |
| Self Level | 5 degrees each direction |
| Service Brakes | Inboard-mounted, wet-disc, rear axle (split option available) |
| Parking Brake | Automatically spring applied, hydraulically released |
| ELECTRICAL SYSTEM | |
| Voltage | 24V machine/12V accessory |
| Number of Batteries | 2 machine/1 accessory |
| Battery Capacity (each) | 1400 CCA |
| Alternator Rating (24V) | 110 amp |
| Lights | LED |
| REFILL CAPACITIES | |
| Fuel Tank | 150 gallons |
| Hydraulic Reservoir | 135 gallons |
| Diesel Exhaust Fluid | 30 gallons |
| TAPERED DIGGING WHEEL | |
| Depth | 7’ 4” |
| Width | 24” standard cut (opt. up to 42”) |
| Dig Frame Width | 46” |
| Conveyor | 8’ dual drive (opt. 10’) |
| Drive Motors | 1230CC (opt. 1600) |
| Radius Cutting | 15”-30” dual wall with standard dig frame |
